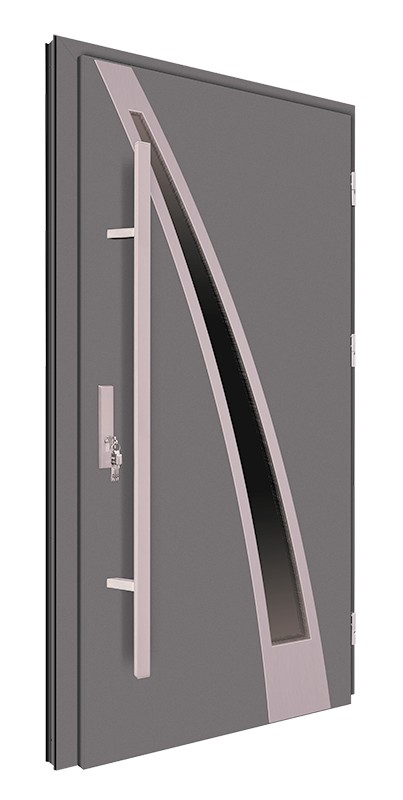

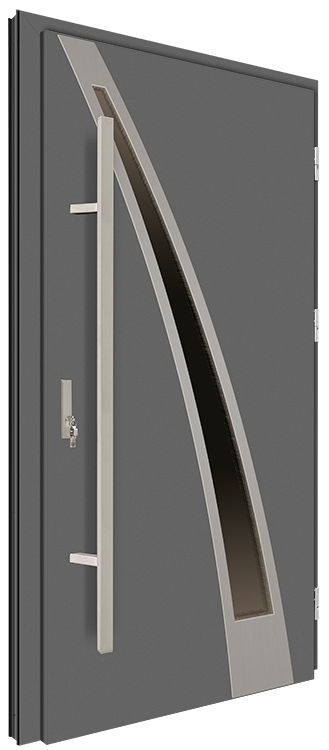

PL 92MK20 Exterior Door

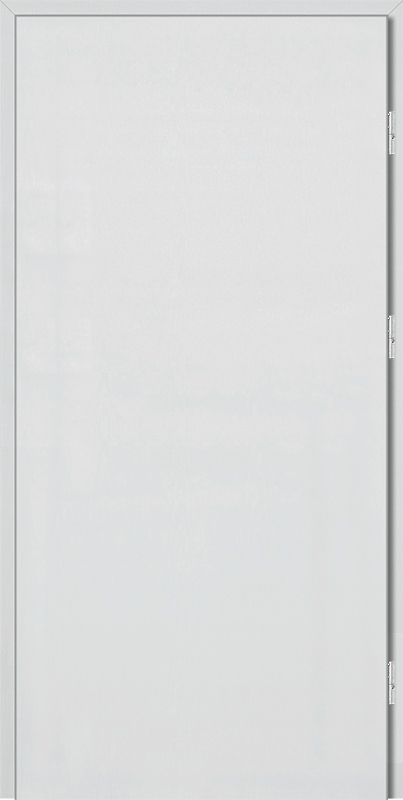

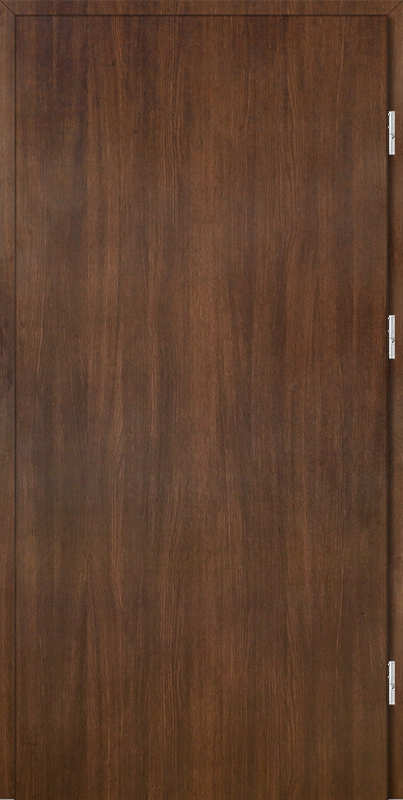

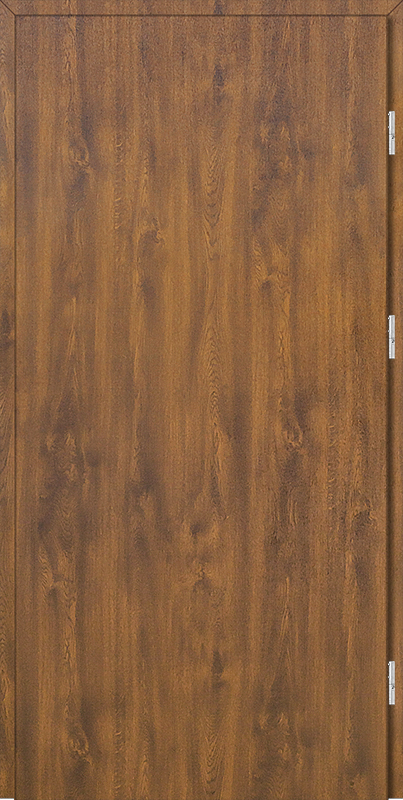

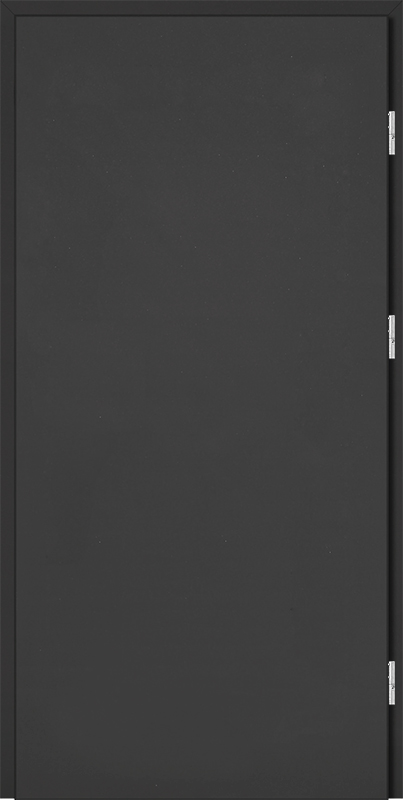

Exterior doors for your house or apartment from MK-DOOR. 92MK20 is a single-leaf model available in five colors: anthracite, white, golden oak, walnut and Winchester. The Winchester color was added to our offer as a novelty in the second edition of the 2021 product catalog. The inner structure of the leaf is made of a plastic rail and stile set strengthened with wooden elements, filled with PVC foam. The leaf has a thickness of 92 mm and a width of 90 cm. Rubber seals installed in the leaf and frame. The aluminum frame is filled with insulating material, covered with PVC veneer in the same color as the door leaf and with a thermal threshold (from 2022 the black frame is also available). The door cannot be shortened. The door is equipped with a 5-point Winkhaus locking system. Our offer includes two hardware solutions: traditional - the HAGA VDV handle with a key switch or modern - the SETTO SOLO handle with a key switch and a single-sided rectangular pull-handle, 150 cm long, in INOX or BLACK. Available glazing versions: brown reflex glass, frosted glass, mirror glass, and graphite glass NEW, black NEW and P4 class glass NEW. P4 glass (additional option available for all types of glazing) is an external pane of a 3 or 4 glazing package, made of: 4 mm pane, 4 PVB foils and 4 mm pane. Graphite, black and P4 glass were added to our offer as a novelty in the second edition of the of the 2022 product catalog. Available only on a special customer order and for an additional cost.
| Thermally insulated door frame | as standard |
| Heat transfer coefficient | 0,74 W/(m2K) |
| Possibility of shortening | not possible |
| Filled | with XPS foam |
| Anti-burglary pins | 6 pcs. |
| Hinges | 3D |
| Lock insert spacing (opened outwards) | G60/55 |
| Lock insert spacing (opened inwards) | G55/60 |
DOOR LEAF THICKNESS - 68 mm
BOLT LOCK - 6 pcs.
MAIN KEY LOCK
DOOR LEAF WITH FOUR-SIDED REBATE
3 x ANTI-BURGLARY PIN
3D ADJUSTABLE HINGE
ALUMINIUM DOOR FRAME WITH INSULATION
STRIKER WITH LOCK PRESSURE ADJUSTMENT
TOP AND BOTTOM BOLT BRACKET
ALUMINIUM THRESHOLD WITH TERMAL PCV INSERT

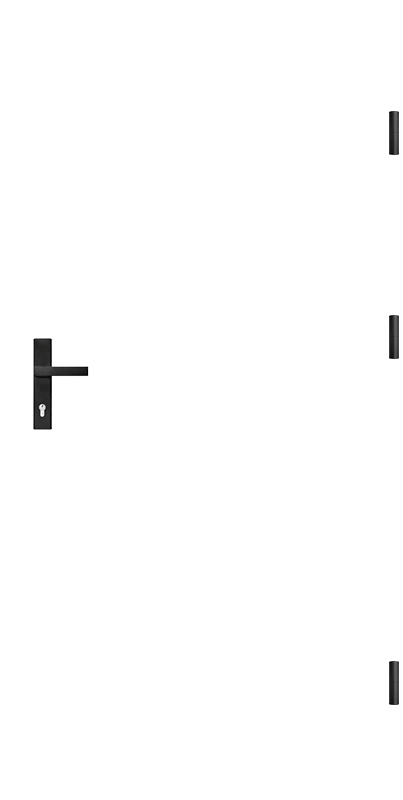

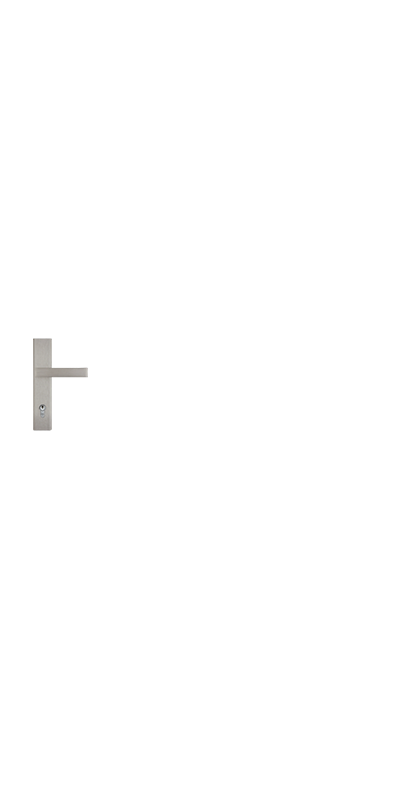

HAGA VDV handle with key lock switch (customer choice)

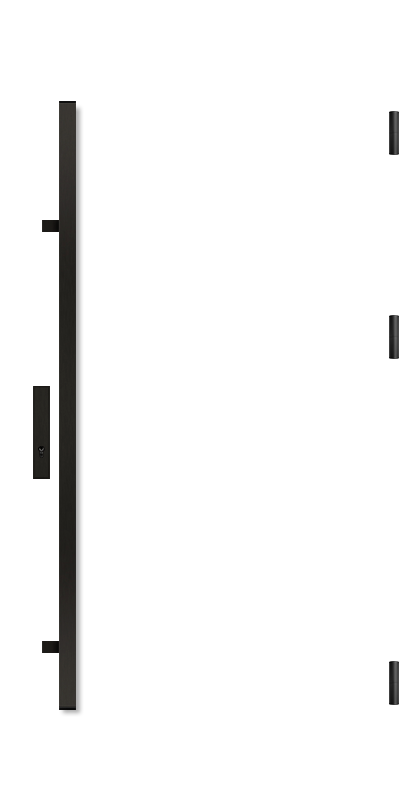

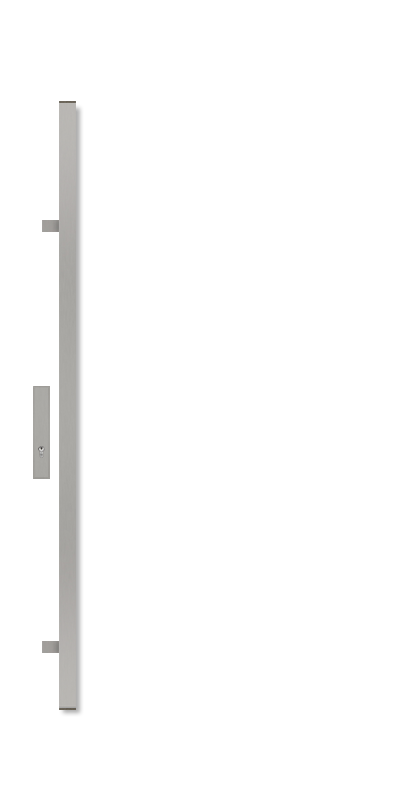

SETTO SOLO handle with key lock switch and door pull handle (customer choice)
HINGE COVERS - INOX
HINGE COVERS - CZARNE
